Pedal Drive Canoe Hardware Kit

The Pedal Drive Canoe system uses an assortment of hardware that is not particularly complicated, but must be sourced from multiple locations and often in much larger quantities than you need. To simplify things we have put everything together into one kit and labeled all of the pieces so you know what each thing is and where it goes.

Includes a micro clam cleat for rudder uphaul line. If you prefer a cleat on the inside of your gunwale, add side mount cleat to your purchase (do not use a side mount if adding to a nesting canoe).

Includes both phenolic plastic star knobs (easily removable) or nyloc nuts and washers (more permanent) for seat mounting attachment.

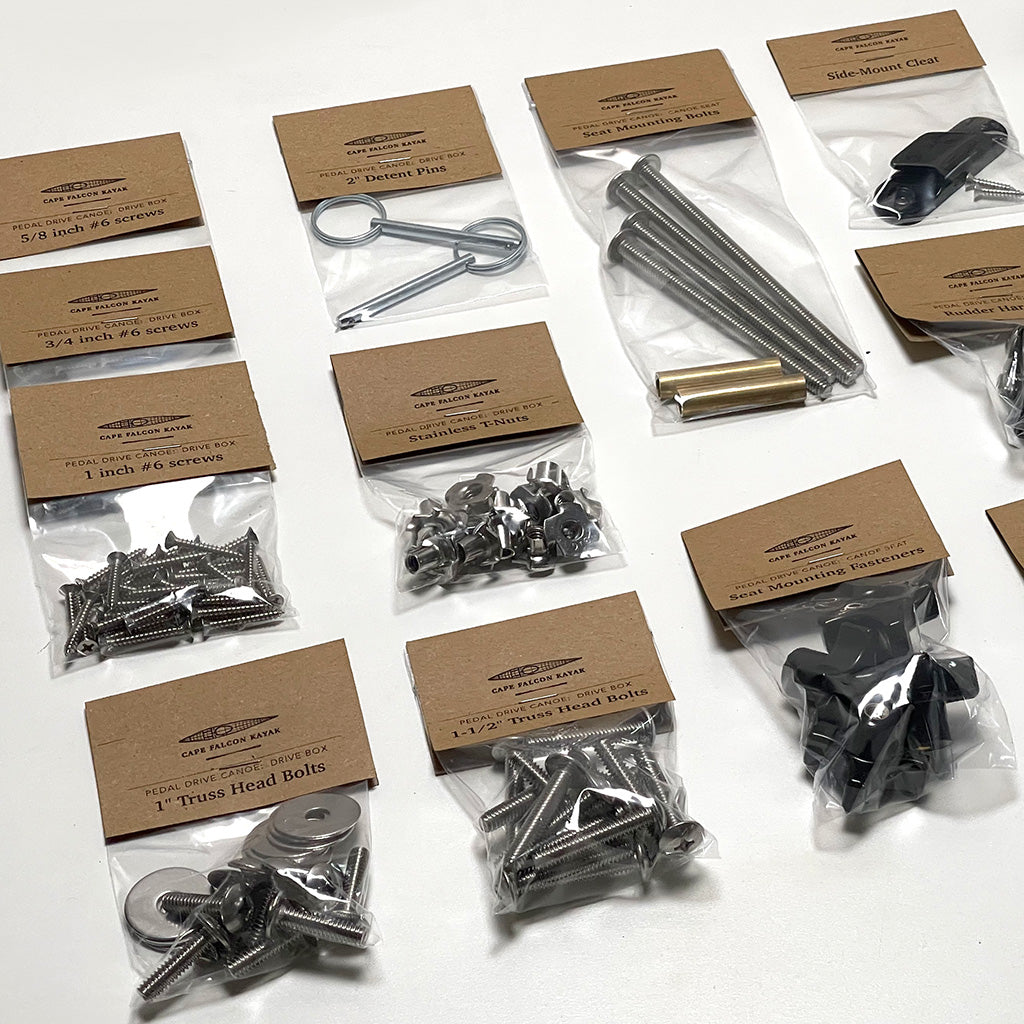

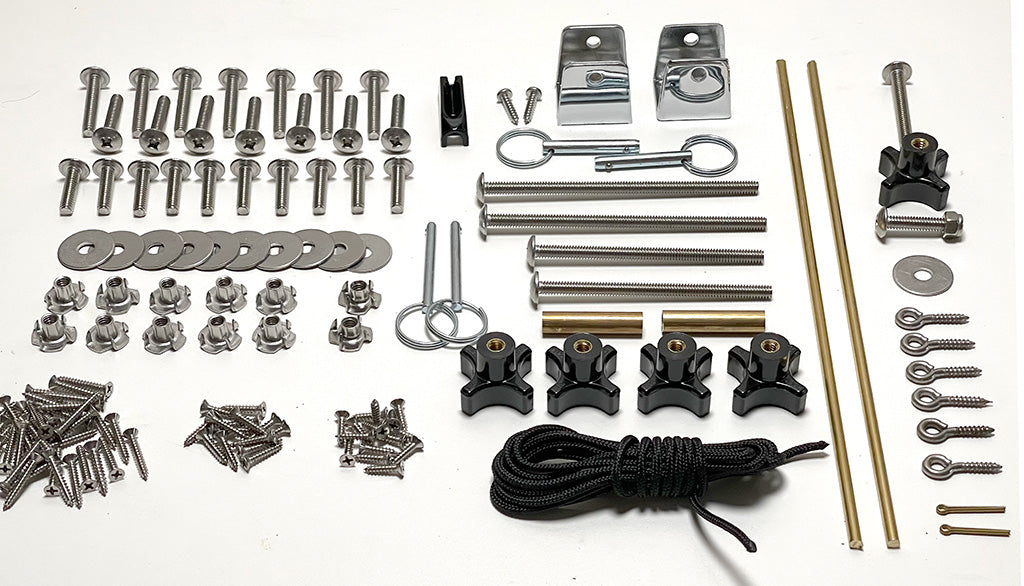

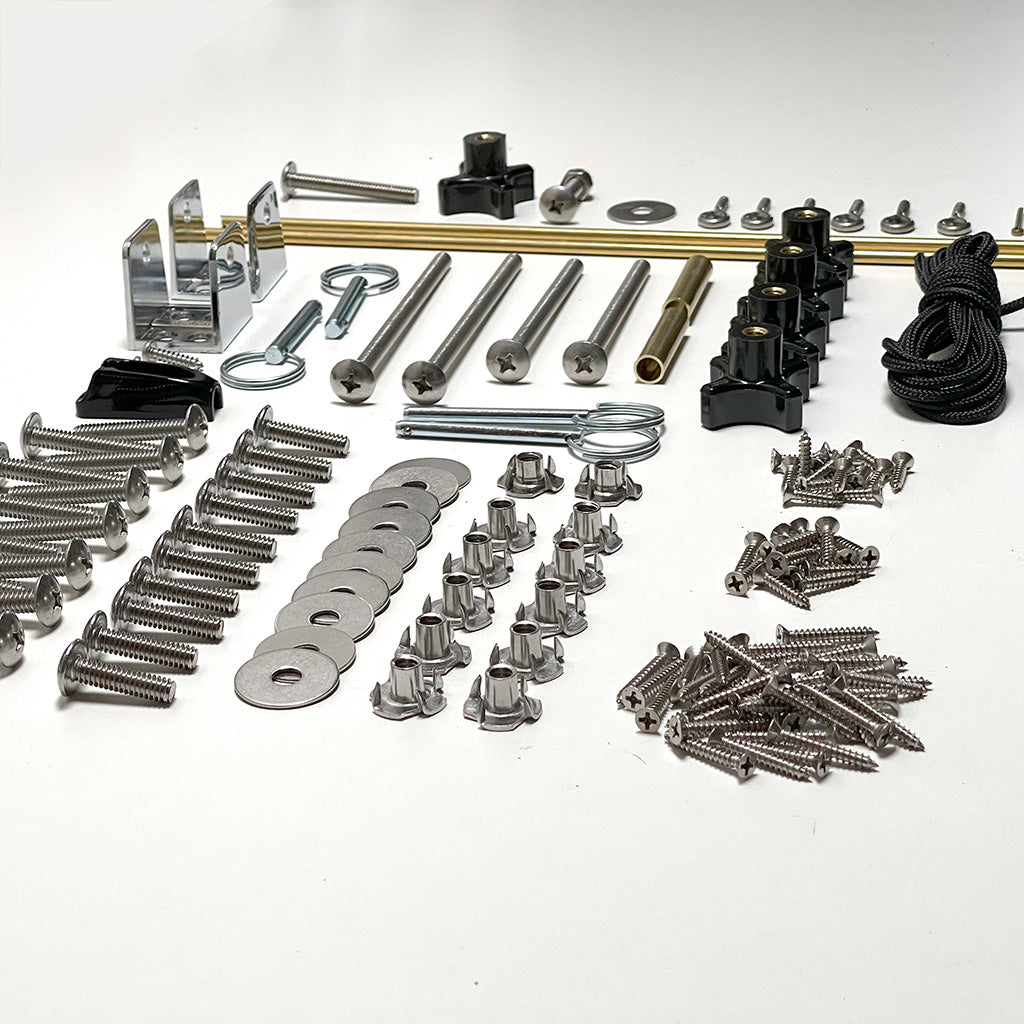

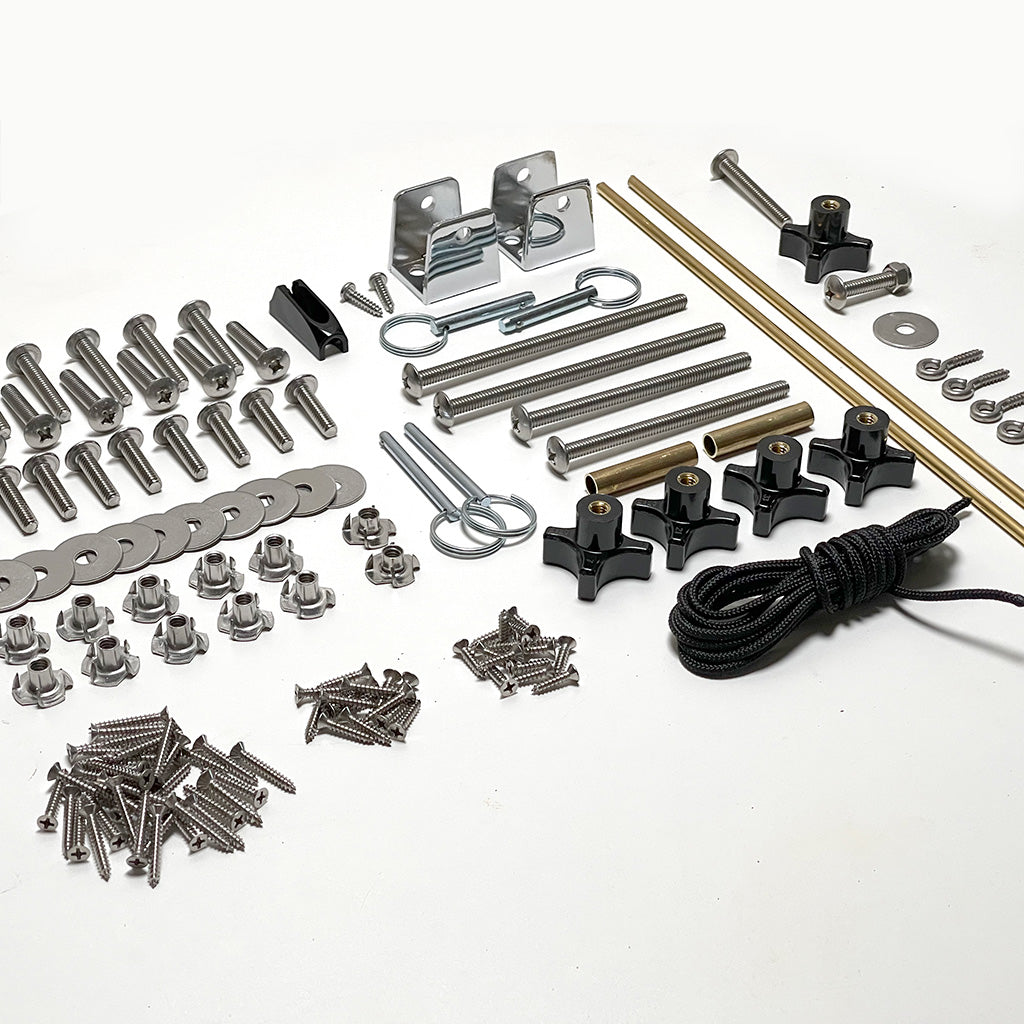

Kit includes:

Drive Box Hardware:
36 ea 1" long #6 flat head Phillips stainless steel screws
14 ea 3/4" long #6 flat head Phillips stainless steel screws
14 ea 5/8" long #6 flat head Phillips stainless steel screws
14 ea 1-1/2" long 1/4-20 stainless steel truss head bolts
12 ea 1" long 1/4-20 stainless steel truss head bolts with 10 ea fender washers
10 ea 1/4-20 stainless steel deep barrel T-nuts
2 ea 1/4-20 stainless standard barrel T-nuts
2 ea 2" long 3/16" detent pins

Rudder Hardware:
30 feet 1/8" polyester cord
Choice of micro clam cleat with fairlead or side mount cleat
1 ea 2" long 1/4-20 stainless steel truss head bolt with star knob
1 ea 1-1/4" 1/4-20 stainless steel truss head bolt with washer and nyloc nut
6 ea stainless eye screws

Seat Hardware:
2 ea 1" partition brackets and mounting screws
2 ea 1-3/4" long 1/4" detent pins
2 ea 4" long 1/4-20 stainless steel truss head bolts
2 ea 5" long 1/4-20 stainless steel truss head bolts
2 ea brass seat spacers
4 ea phenolic plastic star knobs and 4 ea nyloc nuts and wahers for permanent or removeable installations
